Basic Info.
Model NO.
1272 MCM Narcissus AAC Conductor
Wire Core Material
Aluminum
Certification
ISO, CCC
Model
AAC
Brand
OEM
Transport Package

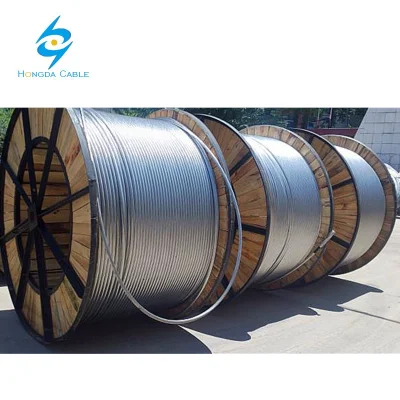

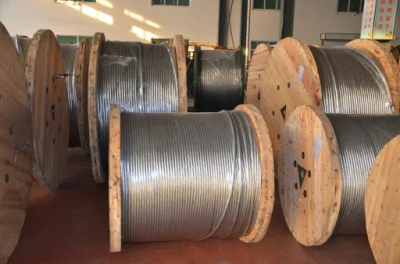

Wooden Drum
Specification
1033.5 MCM Bluebell AAC
Trademark
OEM
Origin
China(Mainland)
HS Code
76149000
Production Capacity
50 Kilometer/Month
Product Description

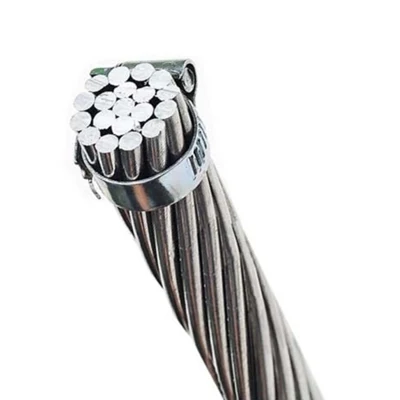

AAC 1272 MCM Narcissus Conductor Application
1272 MCM Narcissus AAC Cable can be used in low and medium voltage overhead lines. It's commonly used in urban areas because of its ability to carry significant voltages over short distances. The long-lasting, corrosion resistant qualities of aluminum make this conductor a popular choice for use in coastal areas as well as for use in the railway and subway industries. Shipyards and offshore construction sites benefit from the conductor's durability.1272 MCM Narcissus AAC Cable can be used for most overhead transmission duties when conductor strength is not a factor. The conductor can also be used for primary and secondary distribution applications.AAC (all aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handling during installation and use of simpler fittings. The wire is corrosion resistant due to its homogeneous construction.
AAC 1272 MCM Narcissus Conductor Standard
-ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.
- ASTM B 231: Concentric Lay Stranded Aluminum 1350 Conductors.
- ASTM B 231: Concentric Lay Stranded Aluminum 1350 Conductors.

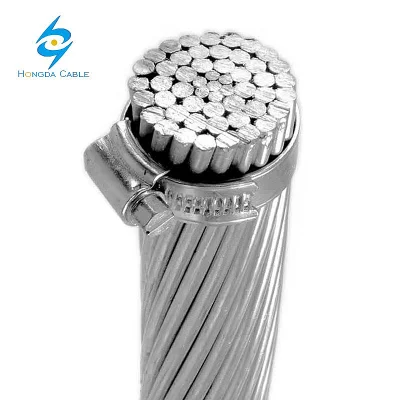

AAC 1272 MCM Narcissus Conductor Construction
| Size AWG: | 1272 |
| Stranding: | 61 |
| Stranding Class: | AAA |
| Diameter Individual Wire Aluminum (Inches): | 0.1444 |
| Diameter Complete Cable (O.D.) (Inches): | 1.3 |
| Cross Sectional Area (Sq. Inches): | 0.999 |
| Weight Per 1000ft Total (Lbs.): | 1194 |
| Rated Breaking Strength (Lbs.): | 22000 |
| Resistance DC 20°C Per 1000ft: | 0.0136 |
| Resistance DC 75°C Per 1000ft: | 0.0173 |
| Allowable Ampacity 90C (Amps): | 1169 Amps |
