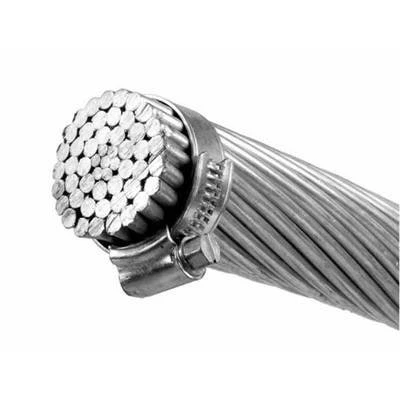

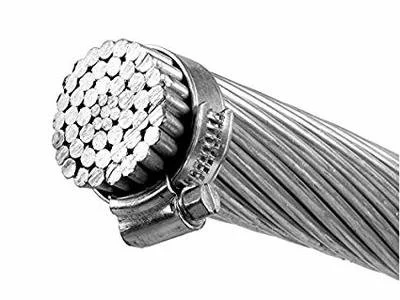

Bare Conductor ASTM Standard Narcissus 1272AWG AAC Overhead Transmission Line

Looking for Bare Conductor ASTM Standard Narcissus 1272AWG AAC for your overhead transmission line? We are a factory specializing in high-quality products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Bare conductor
Material Shape
Round Wire
Range of Application
Transmission
Certification
ISO9001, CE, CCC, RoHS
Brand
Hnbf
Strandard
ASTM/Ice/BS/DIN/GB/etc
Trade Terms
Fob /CIF/ T/T
Color
Slivery
Sample
Providing
Transport Package
Cable Drum
Specification
10sqmm/16sqmm/25sqmm/ect
Trademark
HNBF Cable
Origin
Zhengzhou China
HS Code
7614100000
Production Capacity
500km Per Month

Product Description

1.Product Description
AAC(All Aluminum Conductor) is widely used in the overhead power distribution system of our country and designed for aerial power transmission lines, river crossings etc.It's made of one or more hard drawn aluminum conductors twisted together.
We can supply this conductor according to different recognized standards,such as IEC,BS,ASTM,DIN,GB,AS/NZS etc. We can also satisfiy the customers' needs.

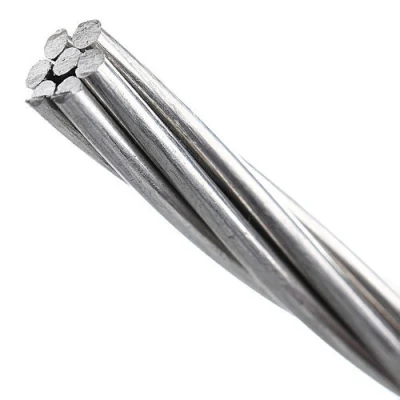

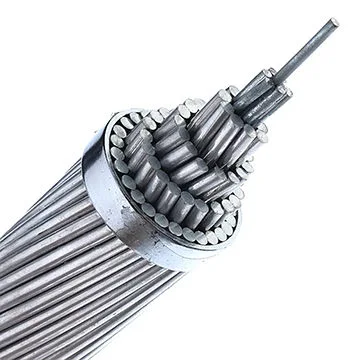

2.Structure
Bare Conductor ASTM Standard Narcissus 1272AWG AAC Overhead Transmission Line
3.Strandard

The following strandard takes ASTM as an example.
ALL ALUMINIUM CONDUCTOR                    ASTM B231
Code Name Total Area Stranding and Wire Diameter Overall Diameter Linear
Mass
Nominal Breaking Load Max.D.C. Resistance at 20°C
AWG or MCM mm2 No./mm mm kg/km daN Ω/km
Peachbell 6 13.29 7/1.554 4.67 37 249 2.1692
Rose 4 21.16 7/1.961 5.89 58 396 1.3624
Iris 2 33.61 7/2.474 7.42 93 597 0.8577
Pansy 1 42.39 7/2.776 8.33 117 732 0.6801
Poppy 1/0 53.48 7/3.119 9.36 147 873 0.539
Aster 2/0 67.42 7/3.503 10.51 186 1100 0.4276
Phlox 3/0 85.03 7/3.932 11.80  234 1347 0.339
Oxlip 4/0 107.23 7/4.417 13.26 296 1698 0.2688
Valerian 250 126.71 19/2.913 14.57 349 2062 0.2275
Sneezewort 250 126.71 7/4.80 14.40  349 2007 0.2275
Laurel 266.8 135.16 19/3.01 15.05 373 2200 0.2133
Daisy 266.8 135.16 7/4.96 14.90  373 2141 0.2133
Peony 300 152.0  19/3.193 15.97 419 2403 0.1896
Tulip 336.4 170.45 19/3.381 16.91 470 2695 0.1691
Daffodil 350 177.35 19/3.447 17.24 489 2804 0.1625
Canna 397.5 201.42 19/3.673 18.36 555 3184 0.1431
Goldentuft 450 228 19/3.909 19.55 629 3499 0.1264
Syringa 477 241.68 37/2.882 20.19 666 3849 0.1193
Cosmos 477 241.68 19/4.023 20.12 666 3708 0.1193
Hyacinth 500 253.35 37/2.951 20.65 698 4035 0.1138
Zinnia 500 253.35 19/4.12 20.6 698 3888 0.1138
Dahlia 556.5 282 19/4.346 21.73 777 4327 0.1022
Mistletoe 556.5 282 37/3.114 21.79 777 4362 0.1022
Meadowsweet 600 304 37/3.233 22.63 838 4703 0.0948
Orchid 636 322.25 37/3.33 23.31 888 4985 0.0894
Heuchera 650 329.35 37/3.366 23.56 908 5095 0.0875
Flag 700 354.71 61/2.72 24.48 978 5146 0.0813
Verbena 700 354.71 37/3.493 24.45 978 5487 0.0813
Nasturtium 715.5 362.58 61/2.75 24.76 1000 5874 0.0795
Violet 715.5 362.85 37/3.533 24.74 1000 5609 0.0795
Cattail 750 380 61/2.817 25.35 1048 5985 0.0759
Petunia 750 380 37/3.617 25.32 1048 5875 0.0759
Lilac 795 402.84 61/2.90 26.11 1111 6345 0.0715
Arbutus 795 402.84 37/3.724 26.06 1111 6232 0.0715
Snapdragon 900 456.06 61/3.086 27.78 1257 6978 0.0632
Cockscomb 900 456.06 37/3.962 27.73 1257 6848 0.0632
Goldenrod 954 483.42 61/3.177 28.6 1333 7896 0.0596
Magnolia 954 483.42 37/4.079 28.55 1333 7258 0.0596
Camellia 1000 506.71 61/3.251 29.36 1397 7753 0.0569
Hawkweed 1000 506.71 37/4.176 29.23 1397 7608 0.0569
Larkspur 1033.5 523.68 61/3.307 29.76 1444 8012 0.055
Bluebell 1033.5 523.68 37/4.244 29.72 1444 7863 0.055
Marigold 1113 263.93 61/3.432 30.89 1555 8628 0.0511
Hawthorn 1192.5 604.26 61/3.551 31.05 1666 9245 0.0477
Narcissus 1272 644.51 61/3.668 33.02 1777 9861 0.0477
Columbine 1351.5 684.84 61/3.78 34.01 1888 10478 0.0421
Carnation 1431 725.10  61/3.89 35.03 1999 10768 0.0398
Gladiolus 1510.5 765.35 61/4.00 35.09 2110 11365 0.0376
Coreopsis 1590 805.68 61/4.099 36.51 2221 11964 0.0358
Jessamine 1750 886.71 61/4.302 38.72 2445 13168 0.0325
Cowslip 2000 1013.42 91/3.76 41.4 2791 15300 0.0285
Lupine 2500 1266.67 91/4.21 46.3 3524 18700 0.0230
Trillium 3000 1520.13 127/3.90 50.75 4232 22500 0.0192
Bluebonnet 3500 1773.50  127/4.21 54.8 4985 26200 0.0166

4.Our company
Bare Conductor ASTM Standard Narcissus 1272AWG AAC Overhead Transmission Line
    Henan Baofeng Cable Co., Ltd. is a professional cable & wire manufacturer which integrates R&D, production and sales together.
    Our products sales network has covered more than 20 provinces and municipalities in China. Most of products are sold to many countries for overseas marketing including the following areas like Philippines, Indonesia, Bangladesh, UK, Congo, Iran, Australia, Tanzania, USA,  Madagascar, Pakistan, South Africa, Tunis, Dominica, Honduras, Guatemala, Iraq, Chile, Brazil, Peru etc.

5.Our Certifications
Bare Conductor ASTM Standard Narcissus 1272AWG AAC Overhead Transmission Line

6.Packing Method
Bare Conductor ASTM Standard Narcissus 1272AWG AAC Overhead Transmission Line
Bare Conductor ASTM Standard Narcissus 1272AWG AAC Overhead Transmission Line

Why choose us?
*Free customized sample is available.

*OEM service available based on official & legal authorization.

*Strict quality control system, excellent quality with reasonable price.

*Rapid delivery and feedback, faster lead time than our competitors.

*Strong and professional R&D team to meet your specific needs.

*Appointed shipping company is accpetable.
